openGauss / MogDB 列存表vacuum DELTAMERGE过程申请的锁

2024年3月21日
o
p
e
n
G
a
u
s
s
,
M
o
g
D
B
,
,
阎书利
17
之前测试 openGauss 列存表vacuum DELTAMERGE的时候,发现pg_delta表会在做完vacuum DELTAMERGE后,使用新的物理文件,pg_delta表的relfilenode会发生变化,相当于表重建了。

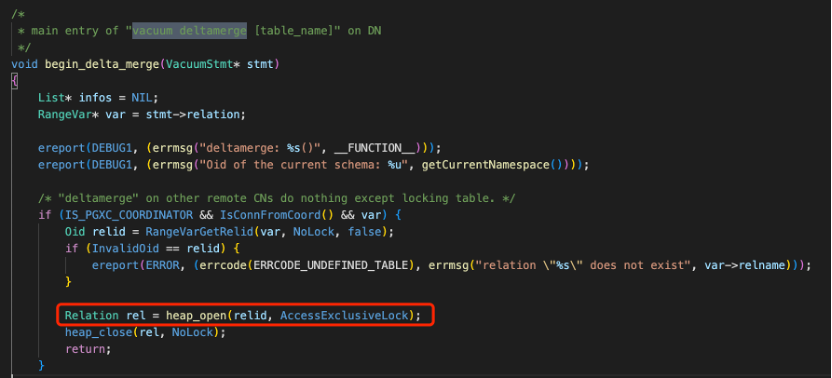

同时为了测试vacuum DELTAMERGE过程申请了什么锁,通过走读源码可以发现,vacuum DELTAMERGE过程申请了AccessExclusiveLock锁。

如下是对锁的验证:

由于测试环境配置有限,做vacuum DELTAMERGE较快,比较难抓到锁,所以我想到了直接从锁入手。AccessExclusiveLock是8级锁,主库申请8级锁时,会将其记录到WAL日志里,所以在测试之前我先切了一个日志:

  •
  •
  •
  •
  •
openGauss=# select pg_switch_xlog(); pg_switch_xlog---------------- 0/3003058(1 row)

这样在我使用mog_xlogdump解析新的日志的时候,尽量不让其他的WAL记录干扰我。

  •
  •
omm1@ubuntu-linux-22-04-desktop:/opt/opengauss/data/pg_xlog$ mog_xlogdump  -R int,varchar,timestamp 000000010000000000000004 | grep -i AccessExclusivemog_xlogdump: FATAL:  error in WAL record at 0/4002B78: invalid record length at 0/40030D0: wanted 32, got 0

然后获取现在的txid=15156,这样下一次我做操作的txid是15157。

  •
  •
  •
  •
  •
  •
  •
  •
openGauss=# select txid_current(); txid_current--------------        15156(1 row)
openGauss=# vacuum DELTAMERGE test_cstore;DELTA MERGE

做完操作后,再用mog_xlogdump解析WAL日志,发现多了三条AccessExclusive Lock的相关记录,xid和预期的15157项对应,三条记录均与做的操作有关。

  •
  •
  •
  •
  •
omm1@ubuntu-linux-22-04-desktop:/opt/opengauss/data/pg_xlog$ mog_xlogdump  -R int,varchar,timestamp 000000010000000000000004 | grep -i AccessExclusivemog_xlogdump: FATAL:  REDO @ 0/40001D0; LSN 0/4000210: prev 0/4000188; xid 15157; term 1; len 24; total 58; crc 3716495508; desc: Standby - AccessExclusive locks: nlocks 1  xid 15157 db 14595 rel 24576REDO @ 0/4000700; LSN 0/4000740: prev 0/40005D0; xid 15157; term 1; len 24; total 58; crc 2397906544; desc: Standby - AccessExclusive locks: nlocks 1  xid 15157 db 14595 rel 24580REDO @ 0/4002150; LSN 0/4002190: prev 0/40020F8; xid 15157; term 1; len 24; total 58; crc 145047305; desc: Standby - AccessExclusive locks: nlocks 1  xid 15157 db 14595 rel 24657error in WAL record at 0/4003150: invalid record length at 0/40031F0: wanted 32, got 0
  •
  •
  •
  •
  •
  •
openGauss=# select oid,relfilenode,relname from pg_class where relfilenode=24576 or relfilenode=24580 or relfilenode=24657;  oid  | relfilenode |    relname-------+-------------+---------------- 24576 |       24576 | test_cstore 24580 |       24657 | pg_delta_24576(2 rows)

根据上述打印的三个relfilenode,在数据库里查询可以发现,vacuum DELTAMERGE过程中,列存表原表、delta表均获取了8级锁AccessExclusive Lock。另外,还有一个relfilenode对应的表其实是delta表的原表,在vacuum DELTAMERGE过程中,delta表发生了重建,对应的表文件发生了变化。

这一现象和文章开头提到的:原始的pg_delta表会在做完vacuum DELTAMERGE后,抛弃原来的物理文件,直接使用新的物理文件,pg_delta表的relfilenode会发生变化的现象一致。

除此之外也可以在一个线程做vacuum DELTAMERGE的同时,使用perf命令记录调用栈,并生成svg火焰图,可以看到vacuum DELTAMERGE过程申请了AccessExclusiveLock,需要用LogAccessExclusiveLock()调用LogAccessExclusiveLocks()把锁记录写到xlog里。

  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
  •
/* * Wholesale logging of AccessExclusiveLocks. Other lock types need not be * logged, as described in backend/storage/lmgr/README. */static void LogAccessExclusiveLocks(int nlocks, xl_standby_lock* locks){    xl_standby_locks xlrec;
xlrec.nlocks = nlocks;
XLogBeginInsert(); XLogRegisterData((char*)&xlrec, MinSizeOfXactStandbyLocks); XLogRegisterData((char*)locks, nlocks * sizeof(xl_standby_lock));
(void)XLogInsert(RM_STANDBY_ID, XLOG_STANDBY_LOCK);}
/* * Individual logging of AccessExclusiveLocks for use during LockAcquire() */void LogAccessExclusiveLock(Oid dbOid, Oid relOid){ if (ENABLE_DMS) { return; }
xl_standby_lock xlrec;
xlrec.xid = GetTopTransactionId();
/* * Decode the locktag back to the original values, to avoid sending lots * of empty bytes with every message. See lock.h to check how a locktag * is defined for LOCKTAG_RELATION */ xlrec.dbOid = dbOid; xlrec.relOid = relOid;
LogAccessExclusiveLocks(1, &xlrec);}

上述方法其实是比较取巧地用了主库申请8级锁时,会将其记录到WAL日志里这一特点进行分析。除此之外,也可以使用gdb在 openGauss / MogDB 调用的相关函数打上断点,等到触发的时候,逐步调试,查看申请的锁情况。

使用gdb调试的方法可以参考以下链接这篇文章里使用gdb调试 PostgreSQL 数据库的相关操作,原理是基本类似的。
https://www.modb.pro/db/1743847348848123904
